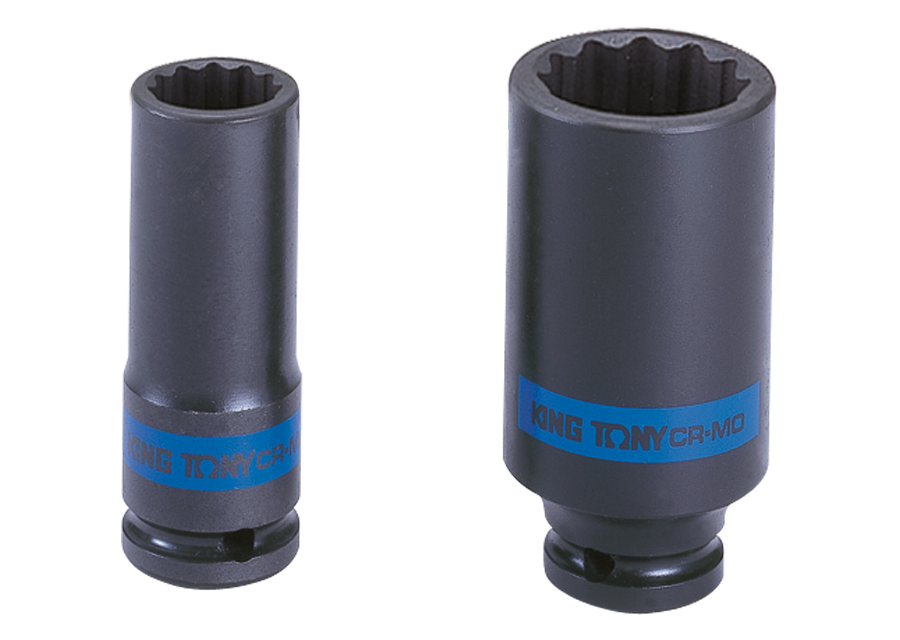

4430M
1/2" 12-Kant Kraft-Steckschlüssel, metrisch
DIN 3121
- Metrisch
- Chrom-Molybdän
- Phosphatiert
 |
Abmessungen
(mm) |
D1
(mm) |
D2
(mm) |
L
(mm) |
l
(mm) |
Gewicht
(g) |
UVP
(ohne MwSt)
*
Unverbindlicher Verkaufspreis in Euro ohne MwSt
|
||
|---|---|---|---|---|---|---|---|---|---|
| 443008M | 8 | 14 | 25 | 78 | 12 | 130 | 9,40€ | ||
| 443009M | 9 | 15 | 25 | 78 | 12 | 135 | 9,40€ | ||
| 443010M | 10 | 17 | 25 | 80 | 12 | 150 | 9,40€ | ||
| 443011M | 11 | 18 | 25 | 80 | 13 | 160 | 9,40€ | ||
| 443012M | 12 | 19 | 25 | 80 | 14 | 170 | 9,40€ | ||
| 443013M | 13 | 20 | 25 | 80 | 14 | 165 | 9,40€ | ||
| 443014M | 14 | 22 | 25 | 80 | 14 | 180 | 9,40€ | ||
| 443015M | 15 | 23 | 30 | 80 | 16 | 236 | 11,11€ | ||
| 443016M | 16 | 24 | 30 | 80 | 16 | 243 | 11,11€ | ||
| 443017M | 17 | 26 | 30 | 80 | 16 | 255 | 11,11€ | ||
| 443018M | 18 | 27 | 30 | 80 | 17 | 267 | 11,11€ | ||
| 443019M | 19 | 28 | 30 | 80 | 18 | 260 | 11,11€ | ||
| 443020M | 20 | 29.2 | 30 | 80 | 20 | 252 | 11,11€ | ||
| 443021M | 21 | 30 | 30 | 80 | 20 | 251 | 12,41€ | ||
| 443022M | 22 | 32 | 30 | 80 | 22 | 304 | 12,41€ | ||
| 443023M | 23 | 33 | 30 | 80 | 24 | 310 | 12,41€ | ||
| 443024M | 24 | 34 | 30 | 80 | 24 | 318 | 12,52€ | ||
| 443027M | 27 | 38 | 30 | 80 | 27 | 368 | 13,87€ | ||
| 443030M | 30 | 42 | 30.5 | 80 | 30 | 422 | 15,47€ | ||
| 443032M | 32 | 46 | 30 | 80 | 32 | 460 | 15,47€ | ||
| 443036M | 36 | 47 | 30 | 80 | 36 | 535 | 18,02€ |
