4235M

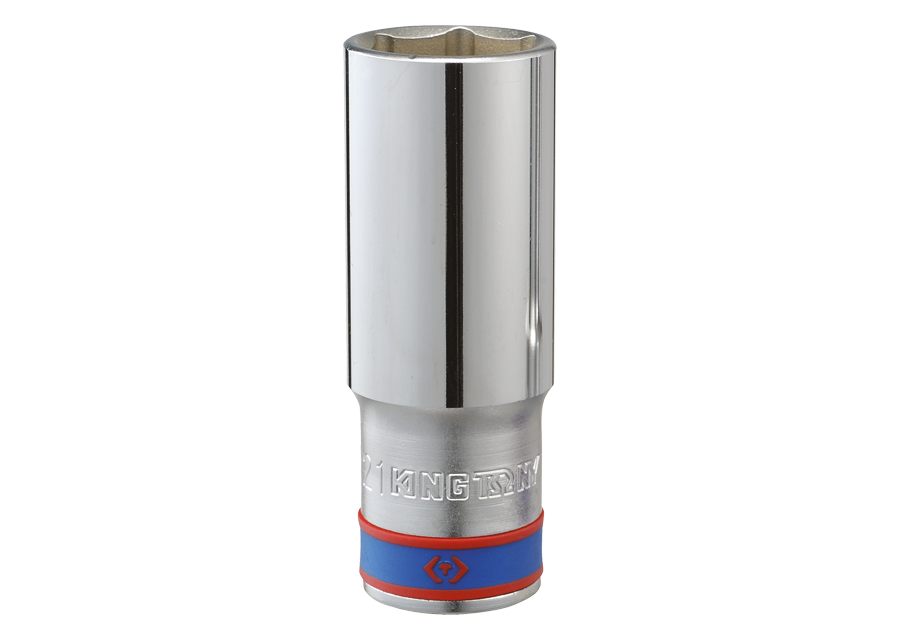

Vaso largo hexagonal en métrico 1/2"
DIN 3124
- en métrico
- Cromo Vanadio, acabado cromado pulido
 |
Dimensión
(mm) |
D1
(mm) |
D2
(mm) |
L
(mm) |
l
(mm) |
Peso
(g) |
PRV
(sin IVA)
*
Precio recomendado de venta al público en euros sin IVA
|
||
|---|---|---|---|---|---|---|---|---|---|
| 423508M | 8 | 13.2 | 22 | 77 | 15 | 112 | 10,17€ | ||
| 423509M | 9 | 14 | 22 | 77 | 15 | 113 | 10,17€ | ||
| 423510M | 10 | 15.2 | 23.7 | 77 | 25 | 116 | 10,17€ | ||
| 423511M | 11 | 16.3 | 23.7 | 77 | 25 | 121 | 10,17€ | ||
| 423512M | 12 | 17.7 | 23.7 | 77 | 26 | 130 | 10,17€ | ||
| 423513M | 13 | 18.7 | 23.7 | 77 | 27 | 127 | 10,17€ | ||
| 423514M | 14 | 20.2 | 23.7 | 77 | 35 | 138 | 10,17€ | ||
| 423515M | 15 | 21.3 | 23.7 | 77 | 35 | 143 | 11,07€ | ||
| 423516M | 16 | 22.6 | 23.7 | 77 | 35 | 149 | 11,07€ | ||
| 423517M | 17 | 23.7 | 22 | 77 | 35 | 156 | 11,07€ | ||
| 423518M | 18 | 25.5 | 22 | 77 | 35 | 151 | 11,52€ | ||
| 423519M | 19 | 26.7 | 23 | 77 | 35 | 162 | 11,52€ | ||
| 423520M | 20 | 27.7 | 24 | 77 | 35 | 187 | 11,52€ | ||
| 423521M | 21 | 28.7 | 25 | 77 | 35 | 194 | 13,20€ | ||
| 423522M | 22 | 29.8 | 26 | 77 | 35 | 195 | 13,20€ | ||
| 423523M | 23 | 31.5 | 27.5 | 77 | 35 | 239 | 13,20€ | ||
| 423524M | 24 | 31.8 | 28.5 | 77 | 35 | 244 | 13,20€ | ||
| 423525M | 25 | 33.8 | 29.5 | 77 | 34 | 224 | 17,25€ | ||
| 423526M | 26 | 34.8 | 30.5 | 77 | 34 | 240 | 17,25€ | ||
| 423527M | 27 | 36.6 | 31.5 | 77 | 34 | 316 | 17,25€ | ||
| 423528M | 28 | 37.8 | 32.5 | 77 | 34 | 360 | 18,79€ | ||
| 423529M | 29 | 38.8 | 33.5 | 77 | 34 | 386 | 18,79€ | ||
| 423530M | 30 | 39.8 | 34.5 | 77 | 34 | 322 | 20,08€ | ||
| 423532M | 32 | 41.8 | 36.5 | 77 | 34 | 355 | 20,08€ | ||
| 423533M | 33 | 43.8 | 38.5 | 77 | 35 | 346 | 29,41€ | ||
| 423536M | 36 | 46.8 | 40.5 | 77 | 36 | 410 | 36,04€ | ||
| 423538M | 38 | 49 | 40.5 | 77 | 38 | 504 | 36,62€ | ||
| 423541M | 41 | 53 | 40.5 | 77 | 40 | 521 | 38,74€ |
